Bentong BTH1-125 100A 2-Pole Isolating Switch for Low-Voltage AC Applications

Product Features

The Bentong BTH1-125 is a 2-pole isolating switch designed for switching and isolating low-voltage AC circuits. Its two-pole configuration allows the corresponding circuit conductors to be switched together for convenient electrical isolation.

The product features a clearly marked 100A rated current, 400V AC rated voltage and AC-22A utilization category, making the electrical ratings easy to identify during product selection and installation.

Application

The BTH1-125 isolating switch is suitable for low-voltage AC electrical distribution and circuit isolation applications. It can be used in distribution boxes, electrical control equipment, residential electrical systems and other installations where manual circuit switching and isolation are required.

The 2-pole configuration makes it suitable for single-phase circuits where both conductors need to be switched or isolated together.

Specifications

Model: BTH1-125

Product Type: Isolating Switch

Number of Poles: 2 Poles

Rated Current: 100A

Rated Voltage: AC 400V

Utilization Category: AC-22A

Product Application: Low-voltage AC circuit switching and isolation

Product Details

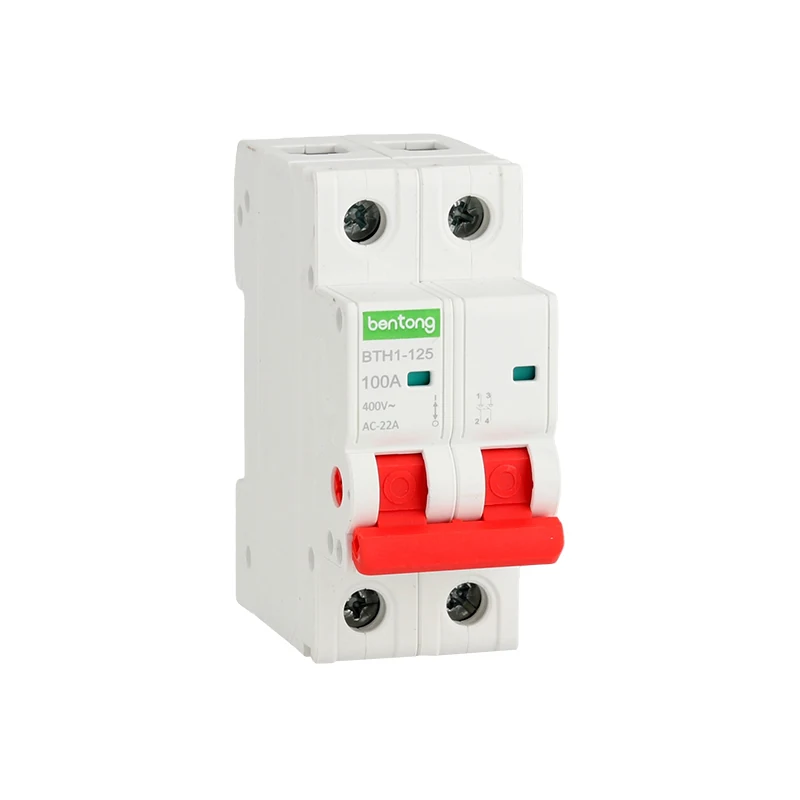

The BTH1-125 features a compact modular design with a clearly visible red operating handle and front electrical markings. The screw terminals provide connection points for electrical wiring, while the ON/OFF operating mechanism allows convenient manual switching and isolation.

The compact design makes the product suitable for installation in electrical distribution and control equipment where space-efficient circuit isolation is required.
