H3Y Series AC Time Relay Timer with H3Y-2 and H3Y-4 Configurations

Product Features

The Bentong H3Y Series is an AC time relay designed for timing control applications. The series includes two configurations, H3Y-2 and H3Y-4, providing different contact and terminal arrangements for different control circuit requirements.

The product features a front-mounted time adjustment dial and clearly marked electrical connection information on the housing. The H3Y-2 and H3Y-4 configurations use different terminal arrangements, allowing users to select the appropriate model according to the requirements of the control circuit.

The relay is designed for a 220VAC power source and features a 5A 250VAC resistive contact rating for practical electrical control applications.

Application

The H3Y Series time relay is suitable for timing control and relay switching applications in electrical control systems.

It can be used in control panels, automation equipment, electrical machinery and other applications where timed relay control is required. The H3Y-2 and H3Y-4 configurations provide different terminal arrangements for different circuit designs.

Specifications

Model: H3Y-2 / H3Y-4
Product type: AC Time Relay / Timer
Power source: 220VAC
Contact rating: 5A 250VAC
Contact type: Resistive
Available configurations: H3Y-2 / H3Y-4
Time adjustment: Front-mounted adjustment dial
Terminal arrangement: Different terminal configurations for H3Y-2 and H3Y-4

Product Details

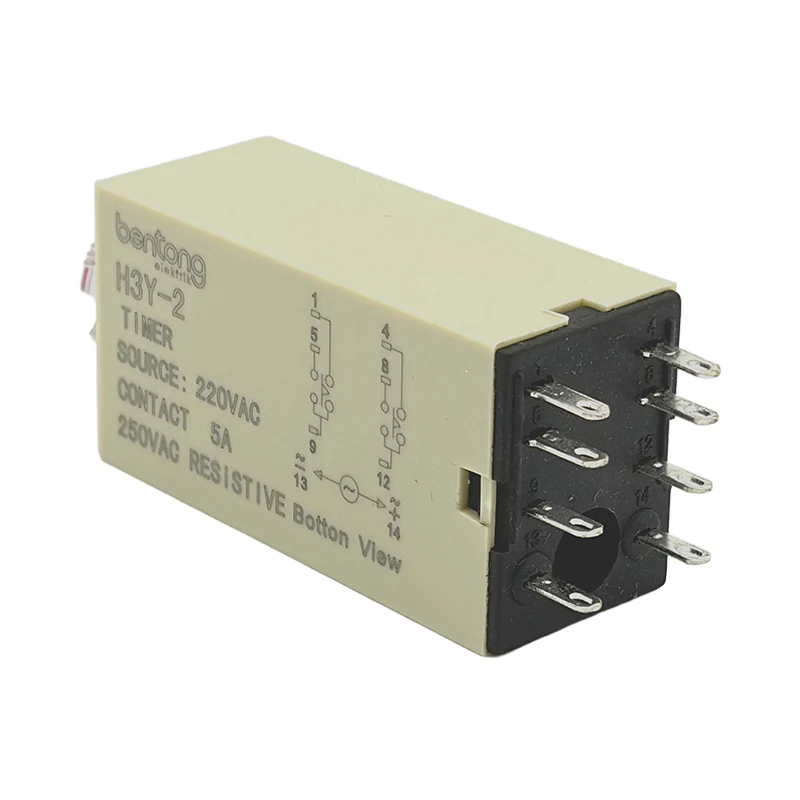

The H3Y Series time relay adopts a compact rectangular housing with a front-mounted rotary adjustment dial for convenient time setting. The front panel provides clear model and operating identification, while the side of the housing shows the corresponding electrical connection diagram.

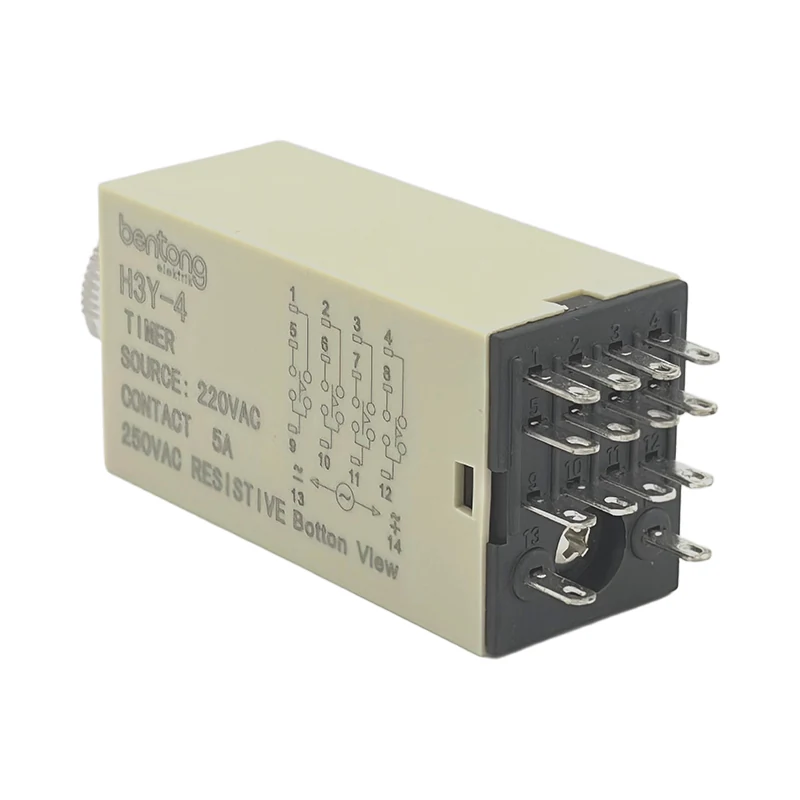

The H3Y-2 and H3Y-4 models feature different terminal arrangements and internal contact configurations. Users can select the appropriate configuration according to the required control circuit. The housing also clearly indicates the 220VAC power source and 5A 250VAC resistive contact rating for product identification and selection.
