PSVA1-16 16A Adjustable Voltage & Current Protector with Digital Display

Product Features

The PSVA1-16 is an adjustable voltage and current protector with a rated current of 16A and rated voltage of 230V. The front panel features a digital display for monitoring electrical parameters and clearly marked protection indicators for over-voltage, under-voltage and over-current conditions.

The product is equipped with SET, UP and DOWN buttons, allowing users to adjust protection parameters and operating settings according to their requirements. The front panel also includes a power indicator and a convenient ON/OFF control button.

Application

Suitable for household electrical appliances, electronic equipment, power supplies and other electrical devices requiring protection against abnormal voltage and current conditions. The plug-in design allows the protector to be connected directly between the wall socket and the electrical appliance for convenient everyday use.

It can be used in residential, office and other low-voltage electrical environments where adjustable voltage and current protection is required.

Specifications

Model: PSVA1-16
Product type: Adjustable Voltage & Current Protector
Rated current Ie: 16A
Rated voltage Ue: 230V
Over-voltage range: AC 130–300V
Under-voltage range: AC 80–210V
Recovery time: 30s
Setting range: 1–999s
Protection functions: Over-voltage / Under-voltage / Over-current
Display: Digital display
Certification marking: CE

Product Details

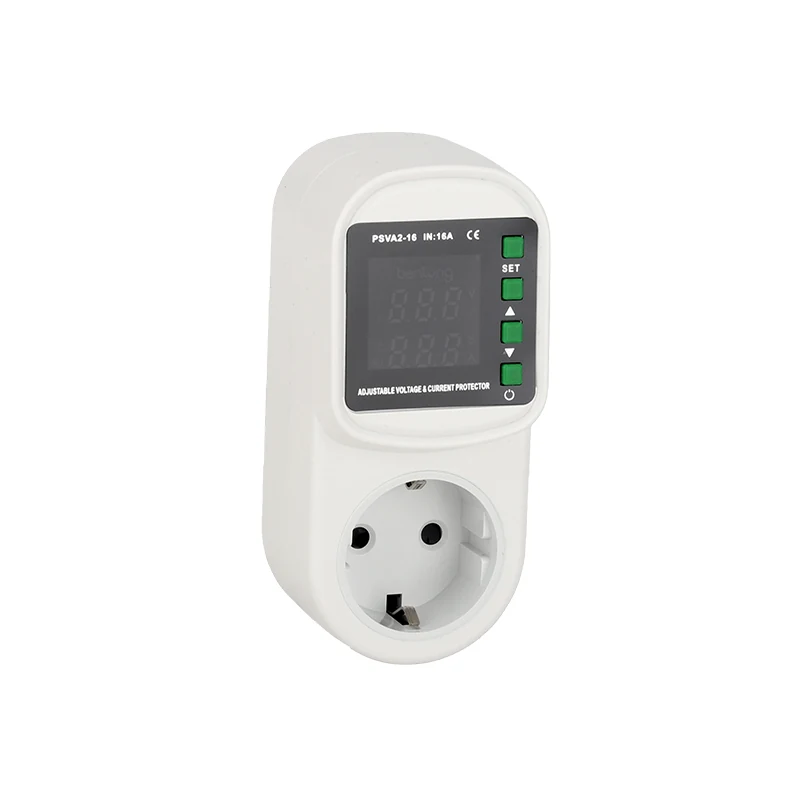

The product adopts a compact plug-in structure with an integrated electrical socket, making it convenient to connect and protect individual electrical appliances. The front operating panel provides clear parameter indicators and control buttons for easy adjustment.

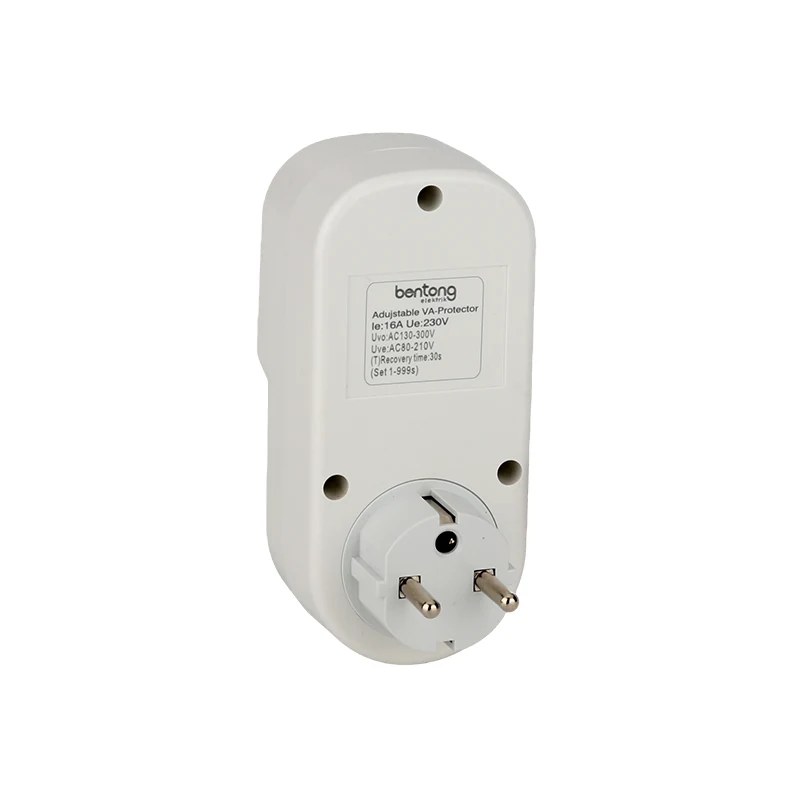

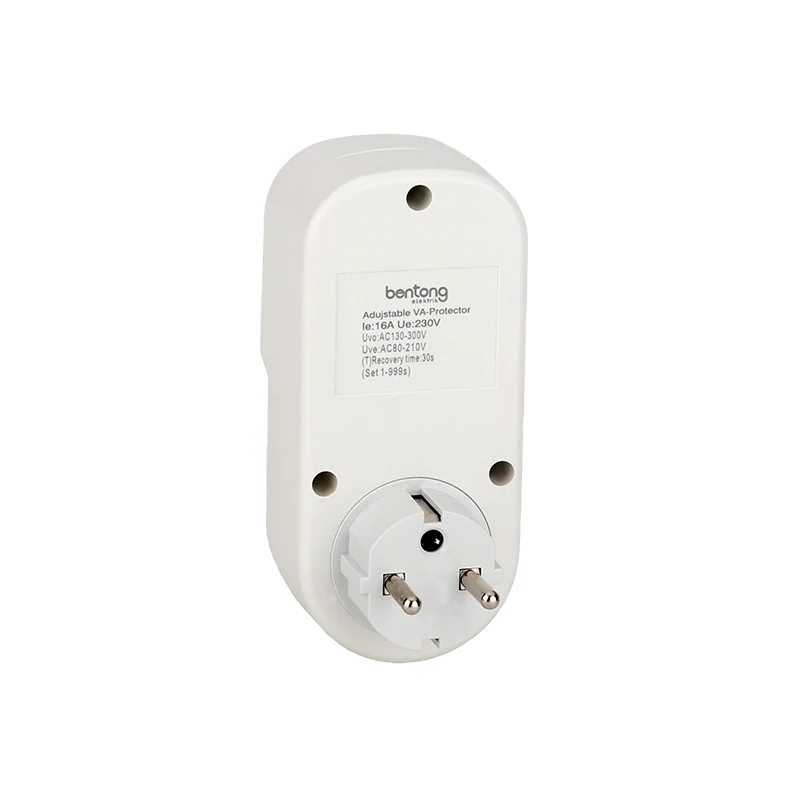

The rear label clearly identifies the main electrical parameters, including 16A rated current, 230V rated voltage, adjustable voltage protection ranges and recovery time. The adjustable settings allow the protector to be configured according to different electrical protection requirements.
